Comprehensive Testing Framework Overhaul and CI Infrastructure

Overview

This PR establishes a complete, production-ready testing framework for the CommunityRule application, consolidating Storybook configuration, implementing comprehensive E2E testing with Playwright, and creating a robust CI/CD pipeline for the Gitea runner environment. The changes transform the project from basic unit tests to a multi-layered testing strategy that ensures code quality, visual consistency, and performance across all browsers and devices.

Changes

��️ Testing Framework Architecture

• Multi-layered testing strategy: Unit (Vitest), Integration, E2E (Playwright), Visual Regression, Performance (Lighthouse CI), and Storybook testing
• Cross-browser compatibility: Full test coverage across Chromium, Firefox, WebKit, and Mobile projects
• Test consolidation: Removed redundant visual regression tests from E2E files, establishing clear separation of concerns

�� Storybook Consolidation & Configuration

• Environment-aware configuration: Automatic detection between local development and production/CI environments
• GitHub Pages integration: Base path configuration for /communityrulestorybook/ deployment
• Testing integration: @storybook/test-runner and @storybook/test for automated component testing
• Accessibility addons: @storybook/addon-a11y for WCAG compliance validation
• Viewport testing: Responsive design validation across multiple breakpoints

🧪 E2E Testing Infrastructure

• Playwright configuration: Optimized for CI environment with deterministic rendering
• Responsive testing: Comprehensive breakpoint coverage (xs, sm, md, lg, xl, 2xl, 3xl, 4xl, full)
• Functional test coverage: 77 tests across 4 test suites (homepage, user-journeys, header.responsive, footer.responsive)
• Visual regression separation: Dedicated visual-regression.spec.ts with 23 screenshot tests
• Accessibility testing: ARIA role validation and screen reader compatibility

🎨 Visual Regression Testing

• Deterministic rendering: Timezone (UTC), locale (en-US), font rasterization settings
• Layout stabilization: settle() helper function for consistent screenshot timing
• CSS normalization: Deterministic CSS for caret, scrollbars, and font rendering
• Browser-specific snapshots: Separate baseline images for each browser engine
• Tolerance management: Configurable pixel difference thresholds for CI environment variations

⚡ Performance Testing

• Lighthouse CI integration: Performance budgets and Core Web Vitals monitoring
• Chrome path resolution: Robust browser installation and path detection for CI
• Architecture compatibility: Fixed Node.js x64 vs Chrome arm64 mismatch on macOS runners
• Performance budgets: Configurable thresholds for TTFB, FCP, LCP, and interaction metrics

🔄 CI/CD Pipeline (Gitea Actions)

• 7 parallel jobs: Unit tests, E2E tests, Visual regression, Performance, Storybook, Lint, and Build
• Self-hosted runner: Optimized for macOS arm64 architecture
• Single-step server management: Start+test+teardown approach preventing process termination issues
• Port conflict resolution: Dedicated port 3010 for CI testing, avoiding conflicts with local development
• Gitea compatibility: Conditional GitHub vs non-GitHub configuration for caching and setup
• Baseline snapshot generation: seed-vr-snapshots job on main branch for stable visual regression baselines

🧹 Code Quality & Maintenance

• ESLint configuration: Comprehensive linting rules with Storybook integration
• Prettier formatting: Consistent code style across all test files
• TypeScript support: Full type checking for test files and configuration
• Test documentation: Comprehensive docs/TESTING.md with examples and workflows

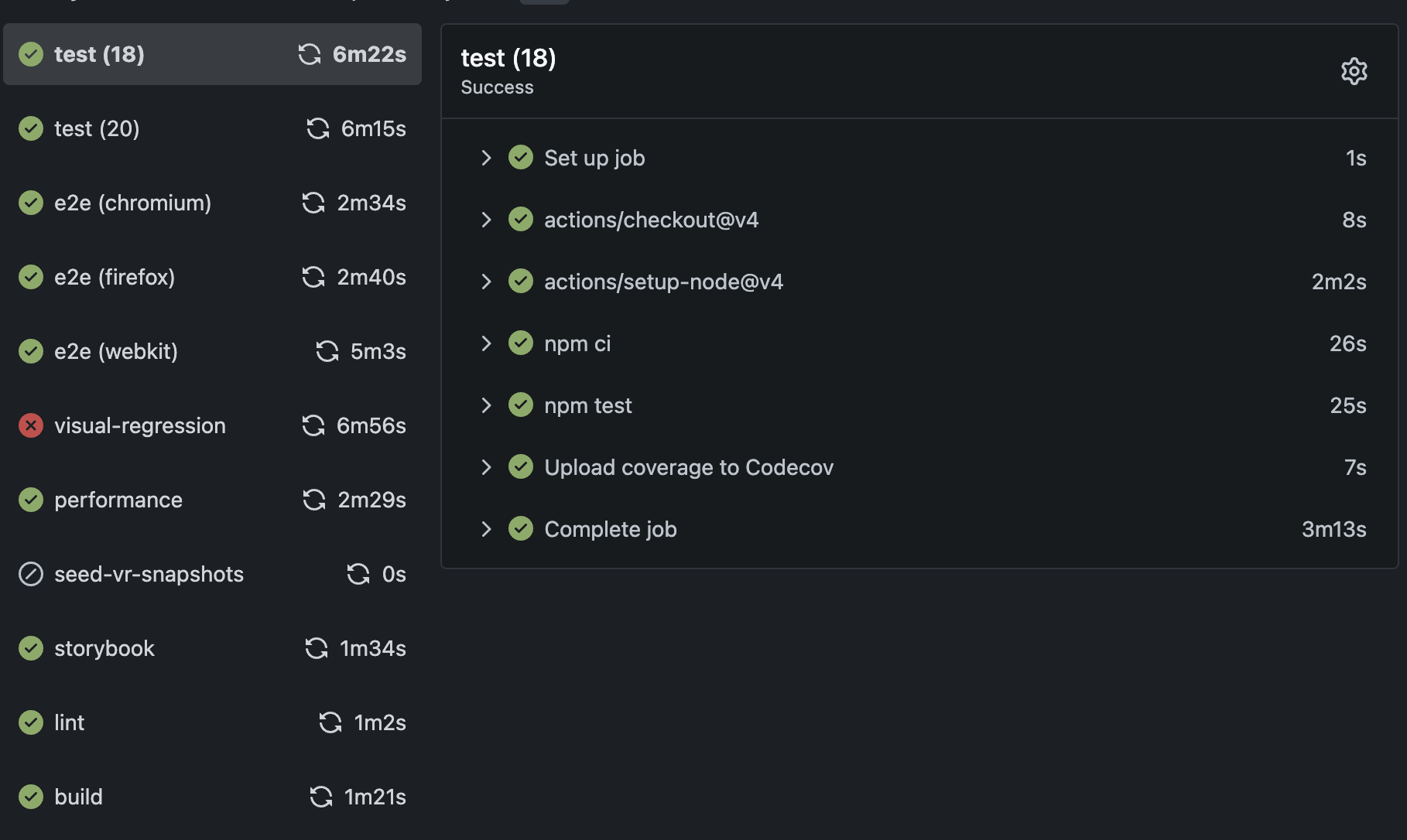

Screenshots

How to Test

🚀 Quick Start

# Install dependencies and Playwright browsers
npm install
npx playwright install

# Run all test suites
npm test              # Unit tests with coverage
npm run e2e          # E2E tests across all browsers
npm run test:sb      # Storybook tests
npm run lhci         # Performance tests

🧪 Comprehensive Testing

# Unit testing
npm run test:watch   # Watch mode for development
npm run test:ui      # UI-based test runner

# E2E testing
npm run e2e:ui       # Playwright UI for debugging
npm run e2e:serve    # Dev server + E2E tests

# Visual regression
npm run visual:test  # Run visual regression tests
npm run visual:update # Update snapshots

# Performance monitoring
npm run performance:budget  # Budget-based testing
npm run performance:monitor # Continuous monitoring

🔍 Verification Checklist

• Unit Tests: 124 tests passing with >85% coverage
• E2E Tests: All 77 tests pass across Chromium, Firefox, WebKit, and Mobile
• Visual Regression: 23 screenshot tests generate consistent results
• Performance: Lighthouse CI scores meet budget thresholds
• Storybook: Builds successfully with GitHub Pages configuration
• Responsive Design: All breakpoints render correctly (xs through 4xl)
• Accessibility: WCAG compliance across all components
• Cross-browser: Consistent behavior in Chromium, Firefox, WebKit, and Mobile

🌐 Browser Testing Matrix

• Chromium: Full test suite validation
• Firefox: Cross-engine compatibility
• WebKit: Safari engine validation
• Mobile: Responsive design verification

Notes

🏗️ Architecture Decisions

• Testing separation: Functional E2E tests separate from visual regression for maintainability
• CI optimization: Single-step server management prevents environment drift between CI steps
• Port isolation: Port 3010 dedicated to CI to avoid conflicts with local development on 3000
• Snapshot strategy: CI-generated baseline snapshots eliminate local vs CI environment differences

🔧 CI Environment

• Self-hosted runner: Manual activation for resource management and control
• Architecture compatibility: arm64 Node.js + arm64 Chrome for optimal performance
• Gitea integration: Conditional configuration for GitHub vs Gitea environments
• Baseline management: Automated snapshot generation on main branch for stable comparisons

🚀 Future Improvements

• Test coverage expansion: Additional edge cases and accessibility scenarios
• Performance optimization: Dynamic budget adjustment based on production metrics
• Visual regression stability: Enhanced deterministic rendering for CI environments
• Storybook enhancement: Additional addons for component testing and documentation

�� Known Limitations

• Visual regression variations: Slight differences between local and CI due to font rendering
• Performance thresholds: Conservative budgets that may need tuning based on real usage
• Placeholder content: Some tests use placeholder links that don't navigate to actual pages
• CI runner management: Manual activation required for resource optimization

🔗 Dependencies & Integrations

• Playwright: E2E testing framework with visual regression capabilities
• Lighthouse CI: Performance monitoring and budget enforcement
• Storybook: Component development and testing environment
• Vitest: Fast unit test runner with React Testing Library integration
• Gitea Actions: CI/CD platform for automated testing and deployment
• Next.js 15: Application framework with built-in testing support

�� Documentation

• Comprehensive testing guide: docs/TESTING.md with examples and workflows
• Runner management scripts: Shell scripts for CI runner control
• Configuration examples: Playwright, Storybook, and CI workflow configurations
• Best practices: Testing patterns and maintenance guidelines

# Comprehensive Testing Framework Overhaul and CI Infrastructure ## Overview This PR establishes a complete, production-ready testing framework for the CommunityRule application, consolidating Storybook configuration, implementing comprehensive E2E testing with Playwright, and creating a robust CI/CD pipeline for the Gitea runner environment. The changes transform the project from basic unit tests to a multi-layered testing strategy that ensures code quality, visual consistency, and performance across all browsers and devices. ## Changes ### ��️ Testing Framework Architecture - **Multi-layered testing strategy**: Unit (Vitest), Integration, E2E (Playwright), Visual Regression, Performance (Lighthouse CI), and Storybook testing - **Cross-browser compatibility**: Full test coverage across Chromium, Firefox, WebKit, and Mobile projects - **Test consolidation**: Removed redundant visual regression tests from E2E files, establishing clear separation of concerns ### �� Storybook Consolidation & Configuration - **Environment-aware configuration**: Automatic detection between local development and production/CI environments - **GitHub Pages integration**: Base path configuration for `/communityrulestorybook/` deployment - **Testing integration**: `@storybook/test-runner` and `@storybook/test` for automated component testing - **Accessibility addons**: `@storybook/addon-a11y` for WCAG compliance validation - **Viewport testing**: Responsive design validation across multiple breakpoints ### 🧪 E2E Testing Infrastructure - **Playwright configuration**: Optimized for CI environment with deterministic rendering - **Responsive testing**: Comprehensive breakpoint coverage (xs, sm, md, lg, xl, 2xl, 3xl, 4xl, full) - **Functional test coverage**: 77 tests across 4 test suites (homepage, user-journeys, header.responsive, footer.responsive) - **Visual regression separation**: Dedicated `visual-regression.spec.ts` with 23 screenshot tests - **Accessibility testing**: ARIA role validation and screen reader compatibility ### 🎨 Visual Regression Testing - **Deterministic rendering**: Timezone (UTC), locale (en-US), font rasterization settings - **Layout stabilization**: `settle()` helper function for consistent screenshot timing - **CSS normalization**: Deterministic CSS for caret, scrollbars, and font rendering - **Browser-specific snapshots**: Separate baseline images for each browser engine - **Tolerance management**: Configurable pixel difference thresholds for CI environment variations ### ⚡ Performance Testing - **Lighthouse CI integration**: Performance budgets and Core Web Vitals monitoring - **Chrome path resolution**: Robust browser installation and path detection for CI - **Architecture compatibility**: Fixed Node.js x64 vs Chrome arm64 mismatch on macOS runners - **Performance budgets**: Configurable thresholds for TTFB, FCP, LCP, and interaction metrics ### 🔄 CI/CD Pipeline (Gitea Actions) - **7 parallel jobs**: Unit tests, E2E tests, Visual regression, Performance, Storybook, Lint, and Build - **Self-hosted runner**: Optimized for macOS arm64 architecture - **Single-step server management**: Start+test+teardown approach preventing process termination issues - **Port conflict resolution**: Dedicated port 3010 for CI testing, avoiding conflicts with local development - **Gitea compatibility**: Conditional GitHub vs non-GitHub configuration for caching and setup - **Baseline snapshot generation**: `seed-vr-snapshots` job on main branch for stable visual regression baselines ### 🧹 Code Quality & Maintenance - **ESLint configuration**: Comprehensive linting rules with Storybook integration - **Prettier formatting**: Consistent code style across all test files - **TypeScript support**: Full type checking for test files and configuration - **Test documentation**: Comprehensive `docs/TESTING.md` with examples and workflows ## Screenshots <img width="909" alt="Screenshot 2025-09-03 at 12.49.45 PM.png" src="attachments/3eb2ecb6-baa3-4833-91fc-c7f3fdf3bf6c"> ## How to Test ### 🚀 Quick Start ```bash # Install dependencies and Playwright browsers npm install npx playwright install # Run all test suites npm test # Unit tests with coverage npm run e2e # E2E tests across all browsers npm run test:sb # Storybook tests npm run lhci # Performance tests ``` ### 🧪 Comprehensive Testing ```bash # Unit testing npm run test:watch # Watch mode for development npm run test:ui # UI-based test runner # E2E testing npm run e2e:ui # Playwright UI for debugging npm run e2e:serve # Dev server + E2E tests # Visual regression npm run visual:test # Run visual regression tests npm run visual:update # Update snapshots # Performance monitoring npm run performance:budget # Budget-based testing npm run performance:monitor # Continuous monitoring ``` ### 🔍 Verification Checklist - [ ] **Unit Tests**: 124 tests passing with >85% coverage - [ ] **E2E Tests**: All 77 tests pass across Chromium, Firefox, WebKit, and Mobile - [ ] **Visual Regression**: 23 screenshot tests generate consistent results - [ ] **Performance**: Lighthouse CI scores meet budget thresholds - [ ] **Storybook**: Builds successfully with GitHub Pages configuration - [ ] **Responsive Design**: All breakpoints render correctly (xs through 4xl) - [ ] **Accessibility**: WCAG compliance across all components - [ ] **Cross-browser**: Consistent behavior in Chromium, Firefox, WebKit, and Mobile ### 🌐 Browser Testing Matrix - **Chromium**: Full test suite validation - **Firefox**: Cross-engine compatibility - **WebKit**: Safari engine validation - **Mobile**: Responsive design verification ## Notes ### 🏗️ Architecture Decisions - **Testing separation**: Functional E2E tests separate from visual regression for maintainability - **CI optimization**: Single-step server management prevents environment drift between CI steps - **Port isolation**: Port 3010 dedicated to CI to avoid conflicts with local development on 3000 - **Snapshot strategy**: CI-generated baseline snapshots eliminate local vs CI environment differences ### 🔧 CI Environment - **Self-hosted runner**: Manual activation for resource management and control - **Architecture compatibility**: arm64 Node.js + arm64 Chrome for optimal performance - **Gitea integration**: Conditional configuration for GitHub vs Gitea environments - **Baseline management**: Automated snapshot generation on main branch for stable comparisons ### 🚀 Future Improvements - **Test coverage expansion**: Additional edge cases and accessibility scenarios - **Performance optimization**: Dynamic budget adjustment based on production metrics - **Visual regression stability**: Enhanced deterministic rendering for CI environments - **Storybook enhancement**: Additional addons for component testing and documentation ### �� Known Limitations - **Visual regression variations**: Slight differences between local and CI due to font rendering - **Performance thresholds**: Conservative budgets that may need tuning based on real usage - **Placeholder content**: Some tests use placeholder links that don't navigate to actual pages - **CI runner management**: Manual activation required for resource optimization ### 🔗 Dependencies & Integrations - **Playwright**: E2E testing framework with visual regression capabilities - **Lighthouse CI**: Performance monitoring and budget enforcement - **Storybook**: Component development and testing environment - **Vitest**: Fast unit test runner with React Testing Library integration - **Gitea Actions**: CI/CD platform for automated testing and deployment - **Next.js 15**: Application framework with built-in testing support ### �� Documentation - **Comprehensive testing guide**: `docs/TESTING.md` with examples and workflows - **Runner management scripts**: Shell scripts for CI runner control - **Configuration examples**: Playwright, Storybook, and CI workflow configurations - **Best practices**: Testing patterns and maintenance guidelines

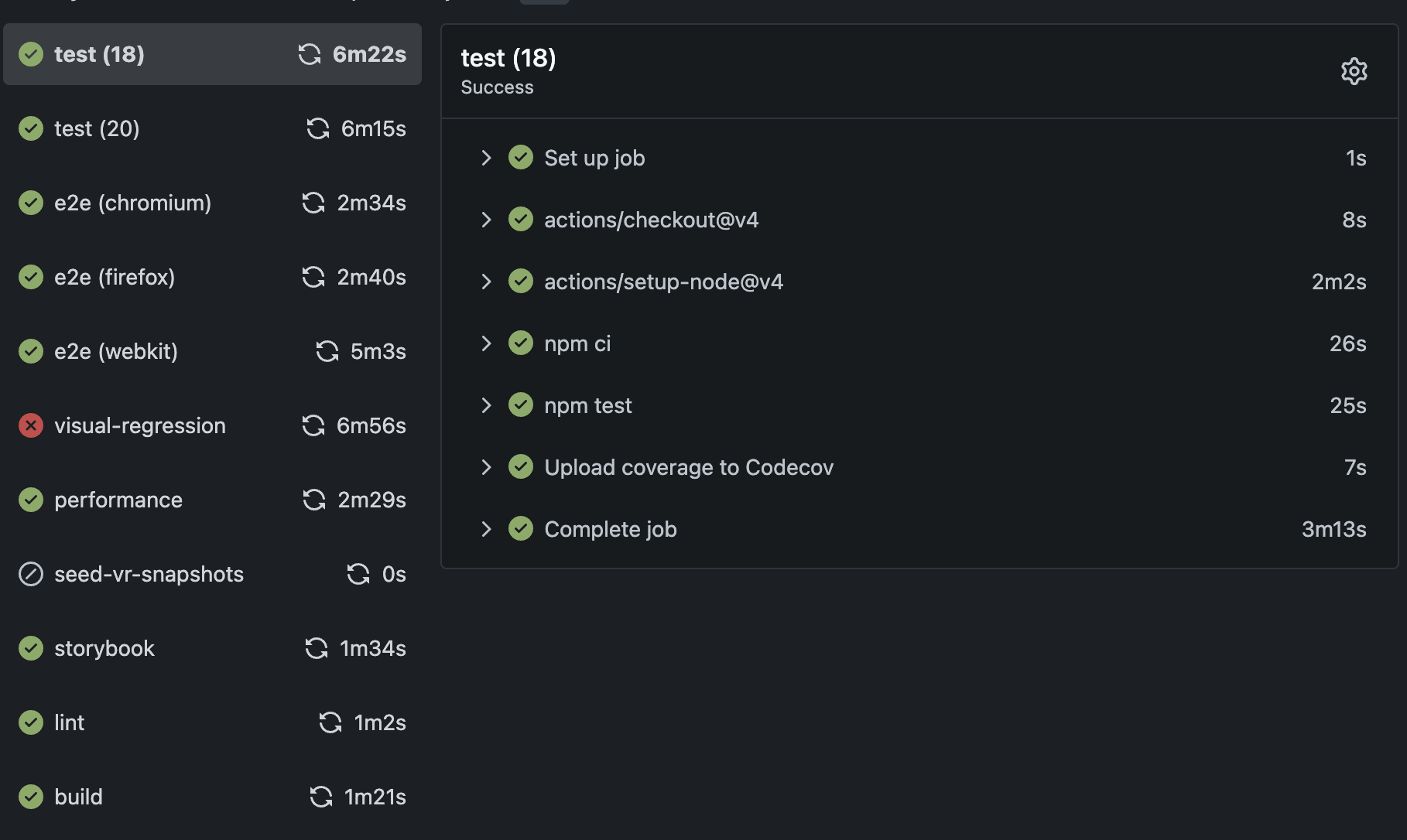

Screenshot 2025-09-03 at 12.49.45 PM.png
